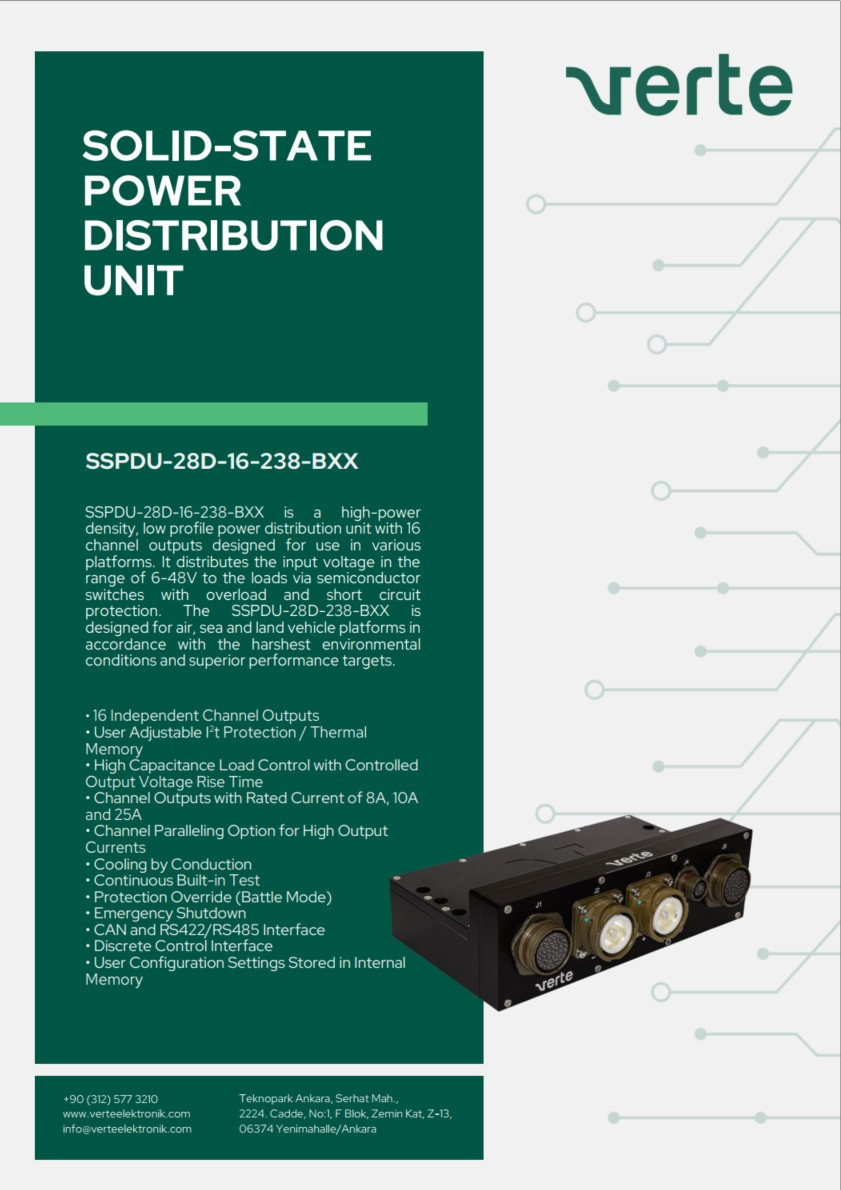

SSPDU-28D-238-BXX series is a high-power density, low profile power distribution unit with 16 channel outputs designed for use in various platforms. It distributes the input voltage in the range of 6-48V to the loads via semiconductor switches with overload and short circuit protection. Device control and configuration can be done and status information can be displayed via CAN and RS-422/485 communication interfaces. The SSPDU-28D-238-BXX is designed for air, sea and land vehicle platforms in accordance with the harshest environmental conditions and superior performance targets.
Capabilities
• 16 independent channel output
• User adjustable I²Tprotection / Thermal memory
• High capacitance load control with controlled output voltage rise time
• Channel outputs with rated current of 8A, 10A and 25A
• Channel paralleling option for high output currents
• Cooling by conduction
• Continuous built-in testing
• Protection override (Battle Mode)
• Emergency shutdown
• SAE J1939 compliant CAN and RS-422/RS485 interface
• Discrete control interface
• User configuration settings are stored internal memory
Features
• Channel status view
• Channel paralleling for high current
• Adjustable I2T, error trip values
• Define On-Off scenario
• Record data for analysis
• Load prioritization
Benefits
• 20 x more MTBF value compared to traditional electromechanical PDUs
• High density, durable design
• Minimized maintenance
• Configurable power distribution
