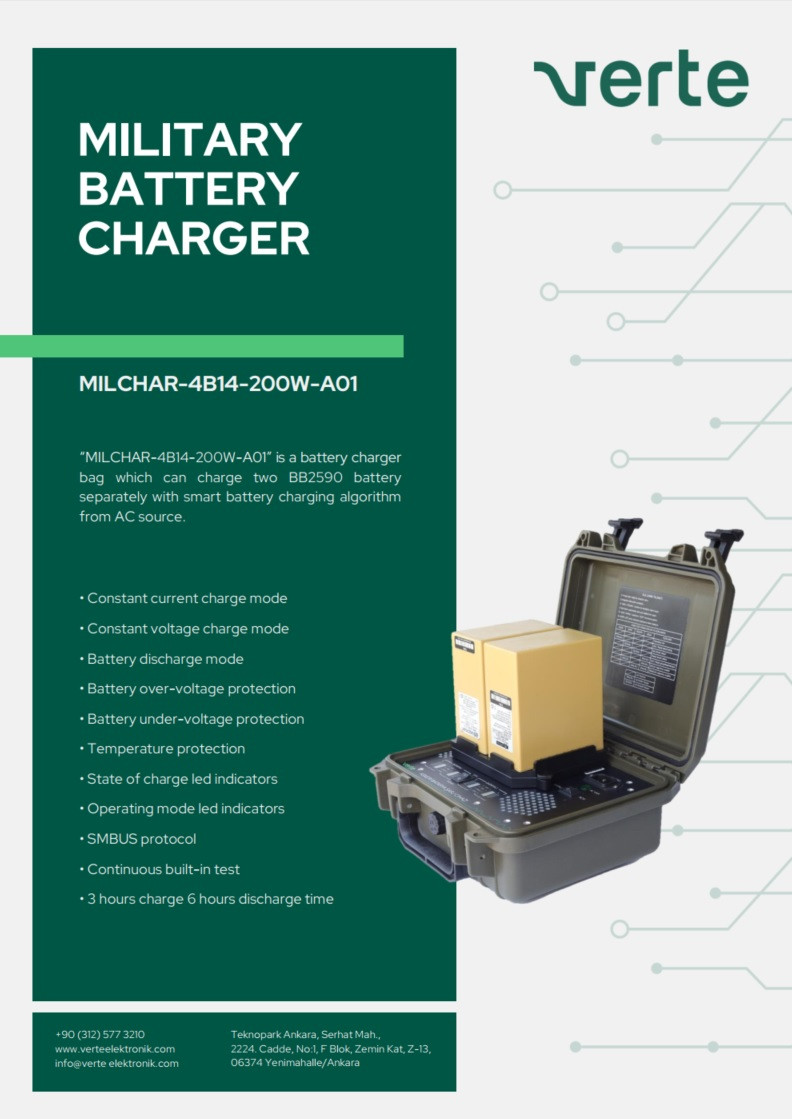

MILCHAR-4B14-200W-A01 can charge two BB2590 batteries simultaneously, allowing security personnel to charge their equipment with high mobility, powered up and ready for action. One of the most important features of MILCHAR-4B14-200W-A01 is its robust and durable structure. Built to withstand the harsh conditions of military environments, resistant to damage from impacts, abrasions and extreme weather conditions.
There are two charging bay inside the bag, each of which can hold a BB2590 battery. MILCHAR-4B14-200W-A01 can charge quickly and safely by providing the most suitable charging current and voltage for BB2590 batteries. It can discharge full batteries to be transported in a manner suitable for aircraft transportation.
MILCHAR-4B14-200W-A01 also has a number of safety features that protect batteries and charging equipment from damage. It has built-in overcharge protection, short circuit protection, which prevents batteries from being damaged by overcharging, short circuit.
AC Input Voltage Range: 90-264 Vrms
AC Input Current (max): 3 A
Output Charging Current (per bay) (max): 3 A
Charging Time (for 7.5 Ah BB2590 Battery): 3 Hours
Discharge Time (for 7.5 Ah BB2590 Battery): 6 Hours
Dimensions: 272 x 249 x 124 (L×W×H) mm
Weight: 4kg
Color Options: OD Green, Black, Desert Tan
Operational Temperature Range: -32C/65C MIL-STD 810G CHG 1, Method 502.6, Procedure II MIL-STD 810G CHG 1, Method 501.6, Procedure II
Storage Temperature Range: -40C/65C MIL-STD-810G CHG 1, Method 502.6, Procedure I MIL-STD-810G CHG 1, Method 501.6, Procedure I
Humidity: MIL-STD 810G CHG 1, Method 507.6, Procedure II
Vibration: MIL-STD 810G CHG 1, Method 514.6, Procedure I
